This hidden cistern system is designed for wall-mounted toilets. It features a durable HDPE tank inside a strong iron frame, dual-flush capability, noise-reduction layer and easy installation in solid or false walls thicker than 110 mm.

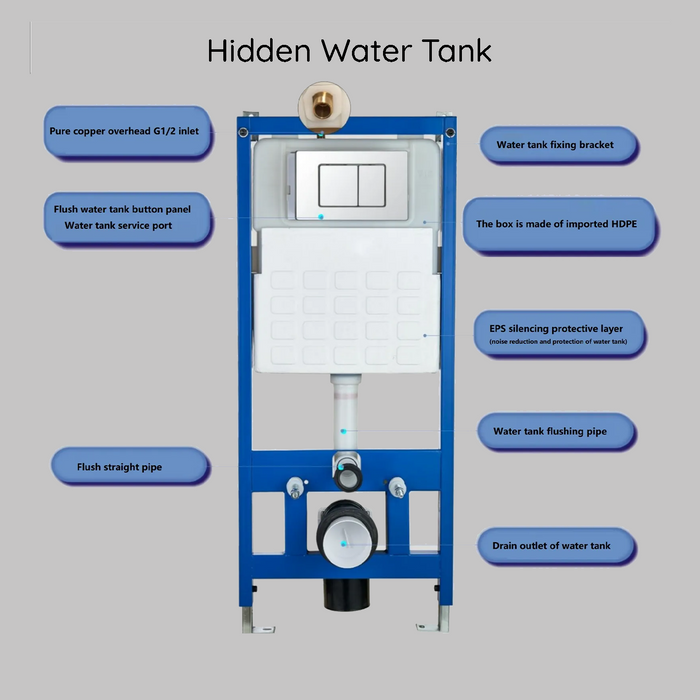

Features

• Concealed / hidden water tank design
• Imported HDPE water tank with integrated blow molding
• EPS silencing protective layer for noise reduction
• Pure copper overhead G1/2 inlet
• Flush straight pipe and water tank flushing pipe
• Water tank fixing bracket and service port
• Drain outlet of water tank
• Flush water tank button panel
• Easy-to-replace inlet and drain valves
• Press-button or induction-type operation
• Supports AODA-compliant wall-mounted toilet installations (allows precise seat height of 430–485 mm and unobstructed wheelchair clearance when installed per Ontario standards)

Specifications

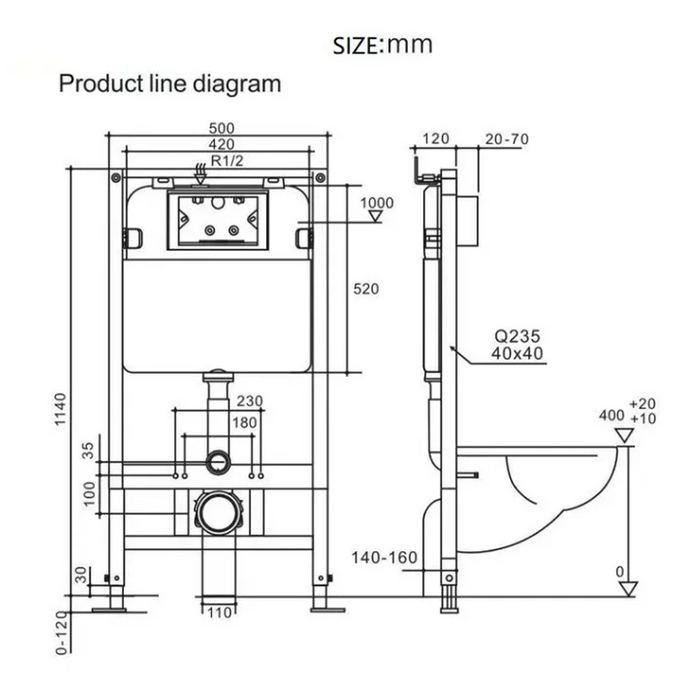

• Installation Size: 500 × 100 × 1140 mm
• Material: HDPE water tank + iron frame
• Full Displacement: 6 L – 7.5 L
• Half Displacement: 3 L – 4.5 L
• Frame Load-Bearing Capacity: 500 kg (one variant) / 400 kg (tested with spray paint & Dacromet treatment)
• Operation Panel Size: 236 × 152 mm
• Toilet Installation Hole Center Distance: 180 / 230 mm
• Water Inlet Interface: G1/2
• Application: Solid wall or false wall (thickness above 110 mm)
• Lifespan: 200,000 cycles
• Implementation Standard: GB 26730
